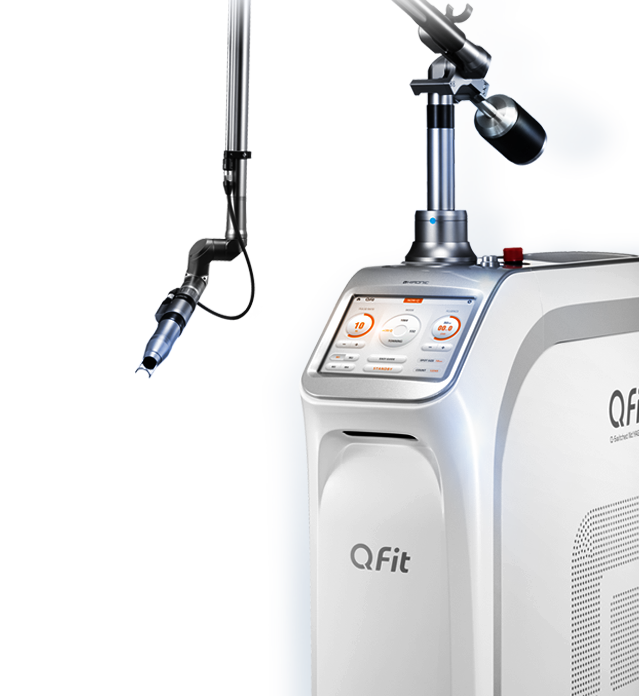

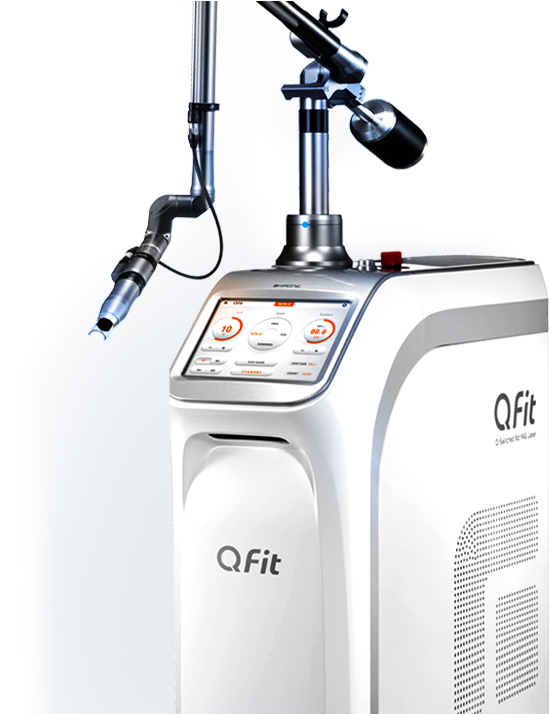

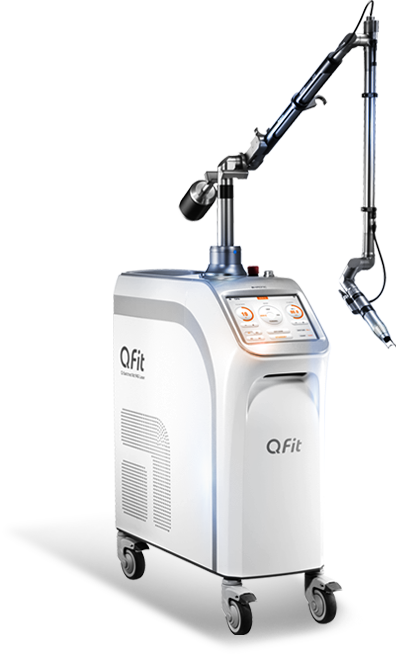

Fall in love with. Q-Fit

Q-Switch Nd : YAG Laser

Accurate and
uniform beam quality

Perfect Top hat Mode

Q-fit shows the perfect top hat beam profile and even beam artillery.

Image result by
Super Hive Flat Lens

Beam Profile

Beam Profile (3D)

Stable and power energy supply

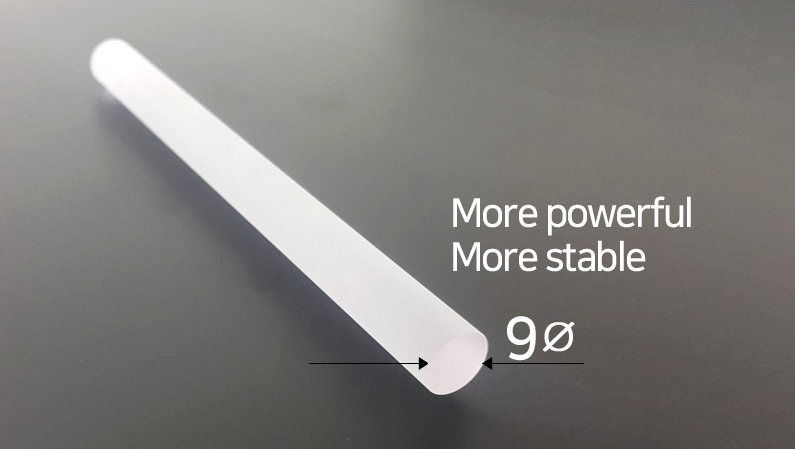

The biggest and highest quality rod (9pi) provides the stable and powerful energy even at longtime treatment.

The highest speed repetition

Q-fit is a smart laser device to operate with True 15Hz pumping speed

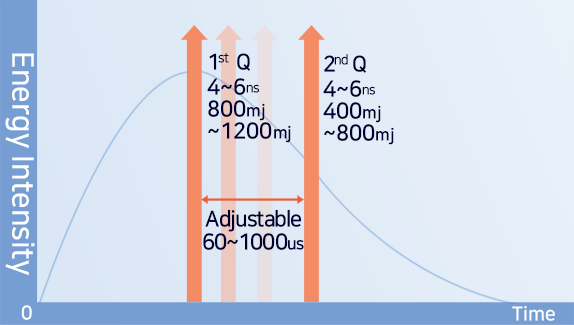

Q-fit toning

Q-fit toning realizes 6:4 of 1st Q and 2nd Q energy ratio in a very short period
of time for the best result.

Q-fit Toning (6:4 Q rate)

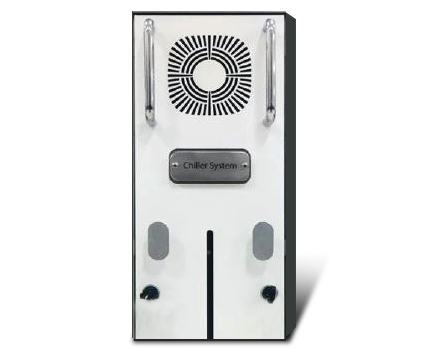

Two cooling chambers for the best performance

Two cooling chambers keep equal-beam quality for user to use stabilized energy, and our patented cooling system removes significant noise.

QFit

Metal Cooling Water tank

No Noisy Fan

Better Thermal Elements Management

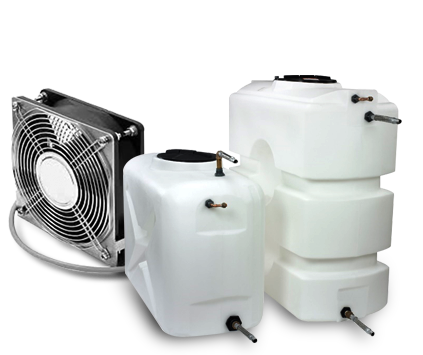

Others

Plastic Water Tank

Noisy Fan

Ordinary Thermal Elements Management

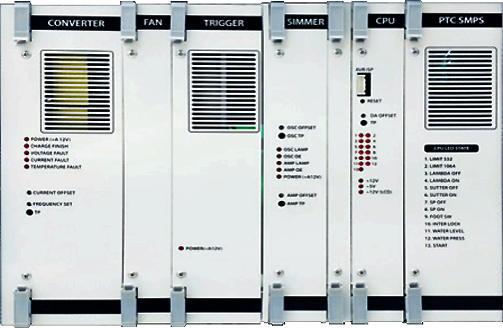

The convenient Slot Type Circuits

The modularization of electronic components of Qfit makes easy engineering for controlling the A/S matters in case of component replacements.

Slot Type Circuits Convenient!!!

Remote Maintenance System using
WCDMA mobile network

WIFI Maintenance

Remote Maintenance System using WIFI mobile network (patented)

No PC, No cable, No upload

RMS (Remote Maintenance System)

Remote Maintenance System using WIFI mobile network

Auto alert

Before Service

Remote Service

Auto Upgrading

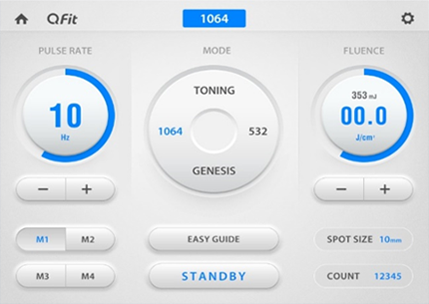

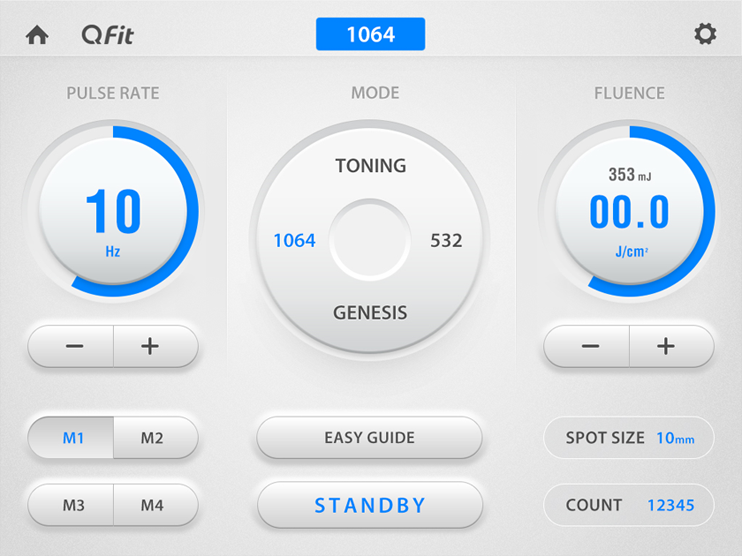

Easy & Simple GUI

One touch system for easy setting by intuitive button control

One-touch system

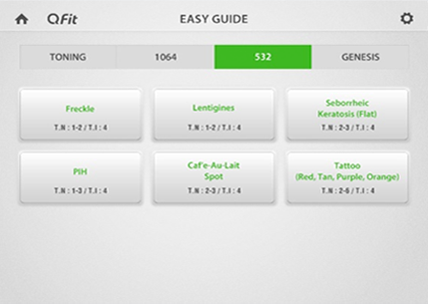

Easy and Convenient One –touch system provides the ultimate user convenience,
with its Easy Guide function. It provides automatic parameter values for various pigmented lesions.

Easy Guide Click! (Ex, Freckle) Automatic spot sizes and
parameter value correction

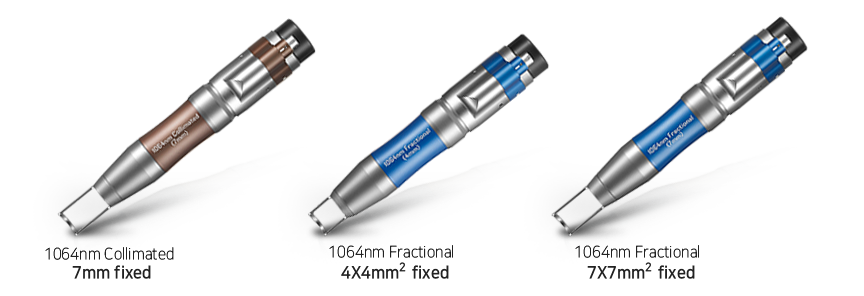

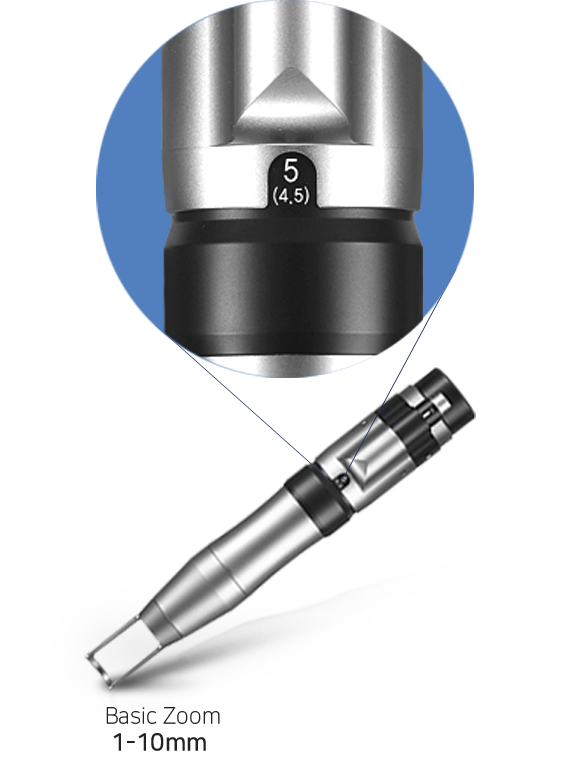

Various Hand pieces specifications

Colliminated / Fractional Handpiece

Colliminated and Fractional Hand Pieces make possible to minimize PIH and conduct safe operation.

Wide spot range

It is possible to select the proper size for the lesions from wide of spot range. (1~10mm)

Wide spot range

It is possible to select the proper size for the lesions from wide of spot range. (1~10mm)

Specification

Device Name QFIT
(Q-switched Nd:YAG Laser)
Laser Nd : YAG
Beam Profile Super Hive Flat mode (top hat mode)
Mode 1064 532 Genesis mode Q-fit Toning
(PTP)
Pulsed Energy [mJ] Max 1800 500 3000 1800
WAVELENGTH [nm] 1064 532 1064 1064
Pulse Width 5~10ns 5~10ns 5~10ns 5~10ns
Spot[mm]/
Repetition [Hz]
1~10 /
1~10
0.5-8 /
1~10
1~10 /
1~10
1~7 /
10~15
8~9 /
10~12
10 / 10
Display 10.2" wide panel and jog dial smart panel
Auto Management Ethernet, WIFI
Optional Part 7mm single collimated
7x7 fractional handpiece (1064nm, 532nm)
4X4 fractional handpiece (1064nm)
Memory User programmable 8 memories to save and load parameters
Noise Level 50dB (Patent cooling system)

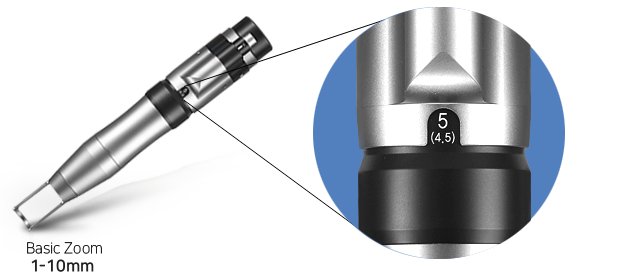

Spot Size Auto sensing zoom collimated handpiece(2~10mm)
Lamp Life Time 10,000,000 shot or more
Electrical Requirements 220VAC, 15A, 60Hz
Dimensions(mm)/
Weight
290(W) x 800(L) x 760(H), 92Kg
Device
Name
QFIT
(Q-switched Nd:YAG Laser)
Laser Nd : YAG
Beam
Profile
Super Hive Flat mode
(top hat mode)
Mode 1064 532 Genesis
mode
Q-fit
Toning
(PTP)
Pulsed
Energy
[mJ] Max
1800 500 3000 1800
WAVELENGTH
[nm]
1064 532 1064 1064
Pulse
Width
5~10
ns
5~10
ns
5~10
ns
5~10
ns
Spot[mm]
/
Repetition[Hz]
1~10
/
1~10
0.5-8
/
1~10
1~10
/
1~10
1~7/10~15
8~9/10~12
1~10
Display 10.2" wide panel and jog dial smart panel
Auto
Management
Ethernet, WIFI
Optional
Part
7mm single collimated
7x7 fractional handpiece (1064nm, 532nm)
4X4 fractional handpiece
(1064nm)
Memory User programmable 8 memories to save and load parameters
Noise
Level
50dB (Patent cooling system)
Spot Size Auto sensing zoom collimated handpiece(2~10mm)
Lamp
Life Time
10,000,000 shot or more
Electrical
Requirements
220VAC, 15A, 60Hz
Dimensions
(mm)
/
Weight
290(W) x 800(L)
x 760(H), 92Kg

Clinical Data

Melasma
Nevus of Ota (ABNOM)
PIH
Café Au Lait
Tattoo

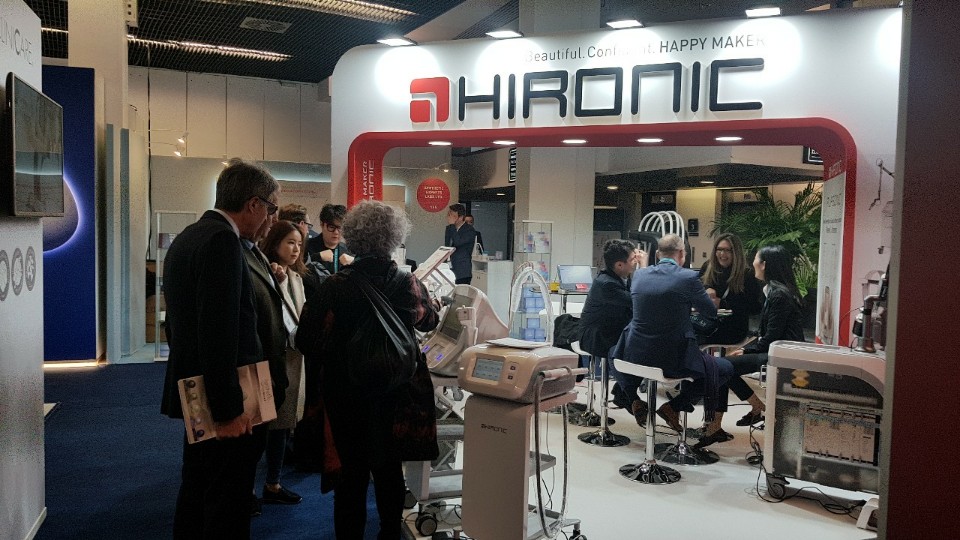

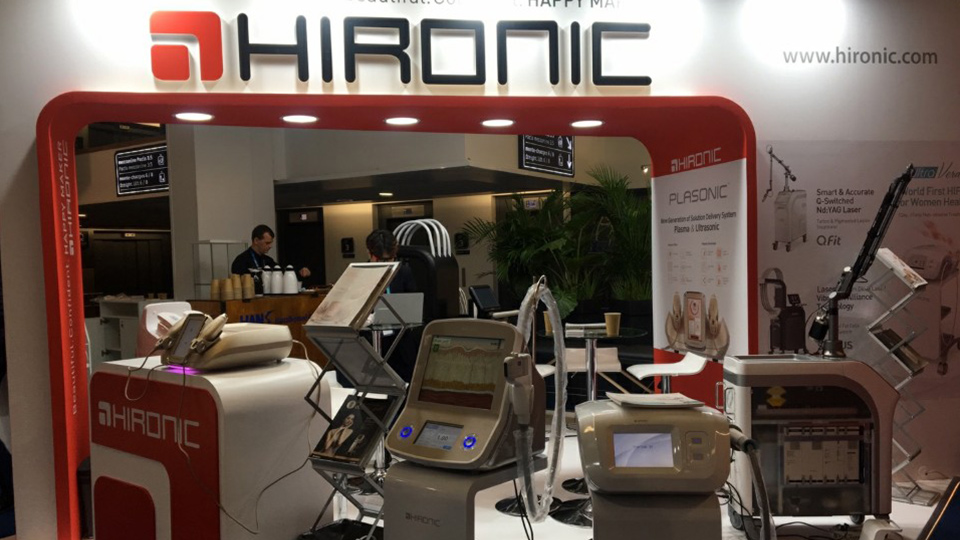

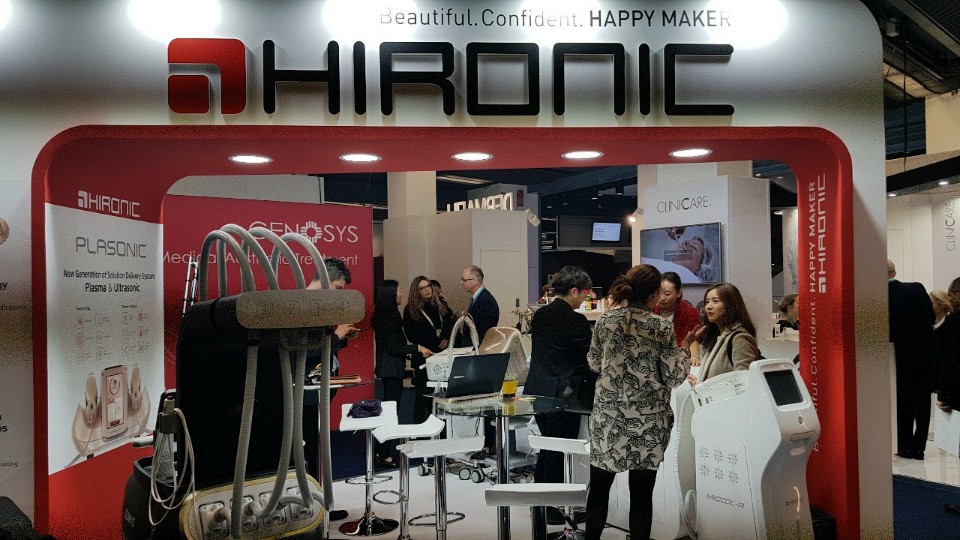

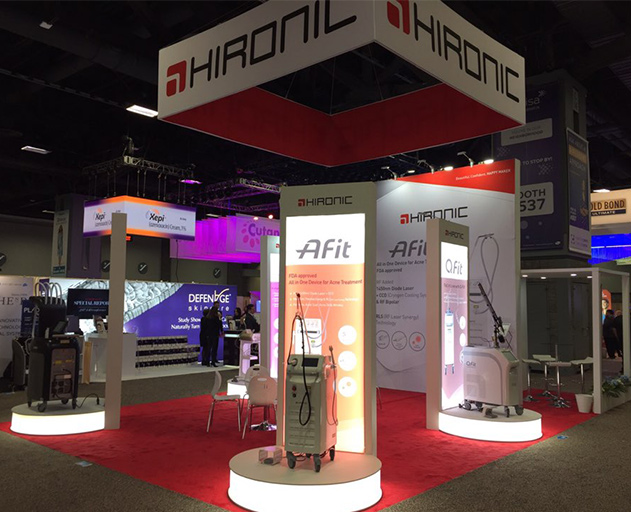

Exhibition

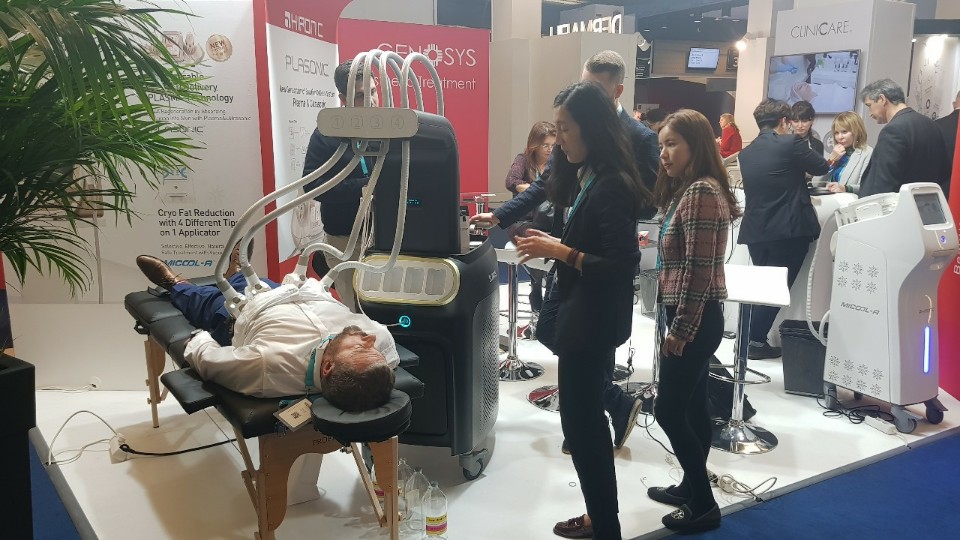

EADV2017

Location : Paris, France
Date : JMar. 3rd - 5th ,2017

Location : Paris, France
Date : JMar. 3rd - 5th ,2017

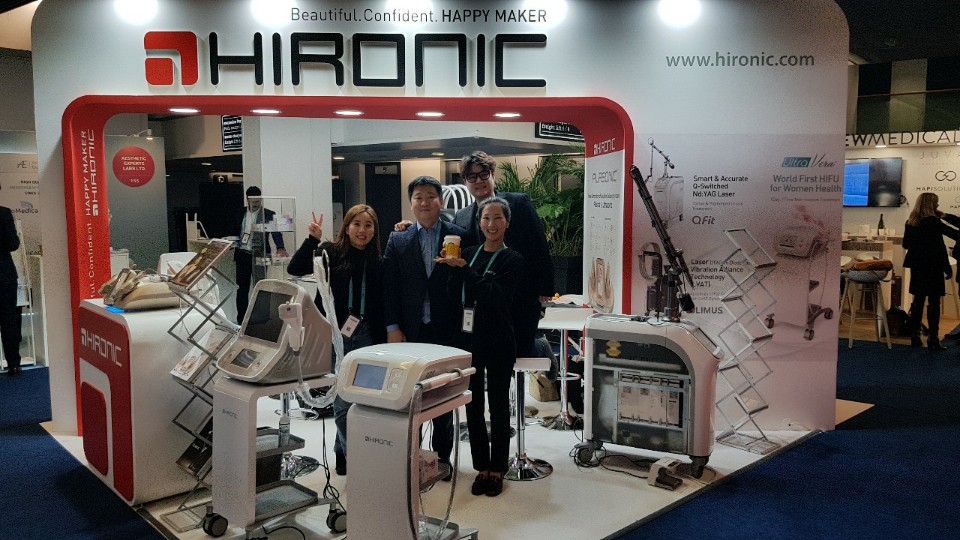

The Exhibition, an integral part of the 26th EADV Congress 2017, will run from 14 September – 17 September 2017 in Hall 2 of Palexpo. It will serve as a central forum for industry to network and conduct exchange with the Healthcare Professional participants. The advanced Q-switched Nd:YAD device, Q-fit will be on display at this exhibition.

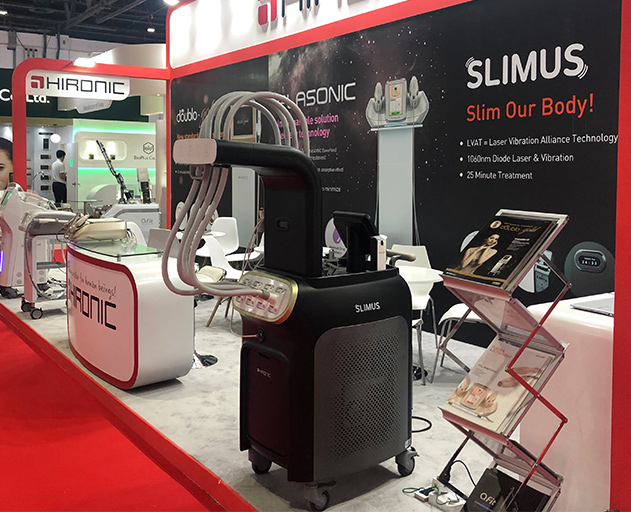

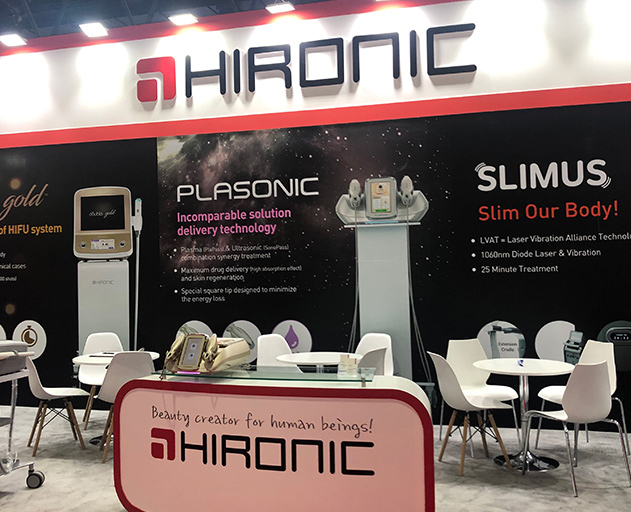

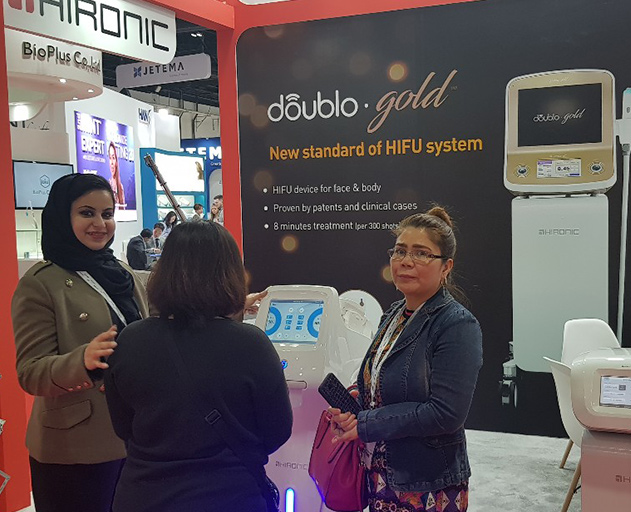

Dubai Derma 2017

Location : Dubai
Date : March 27 – March 29, 2017

Location : Dubai
Date : March 27 – March 29, 2017

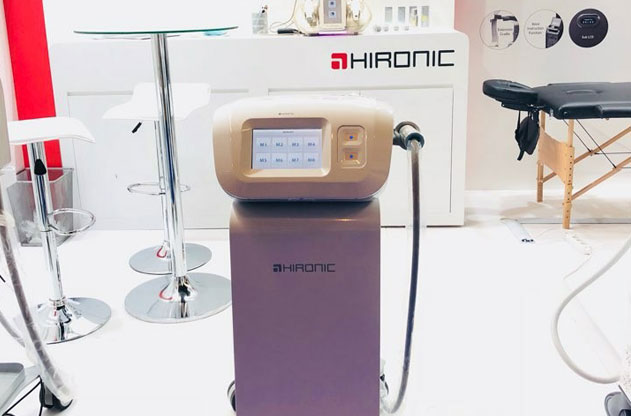

Dubai Derma is the pioneer and largest event in the Gulf & the Middle East, North Africa and South Asia region that showcases the best practices in dermatology science and the latest technology in skin care through specialized conference, exhibition, courses and workshops. A lot of valuable customers had genuine interests in Q-fit on site.

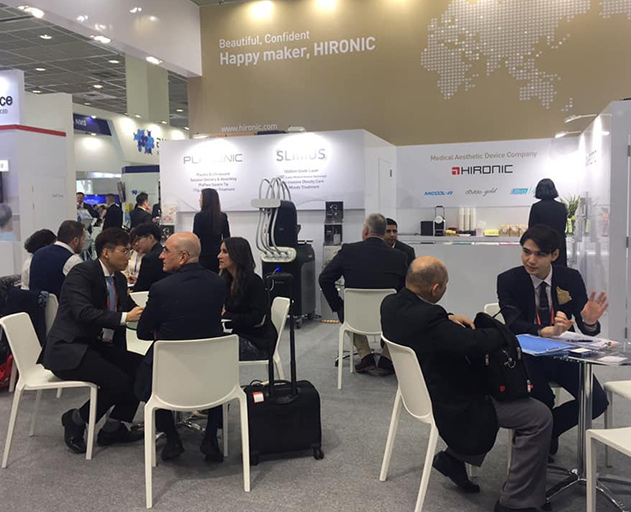

KIMES
